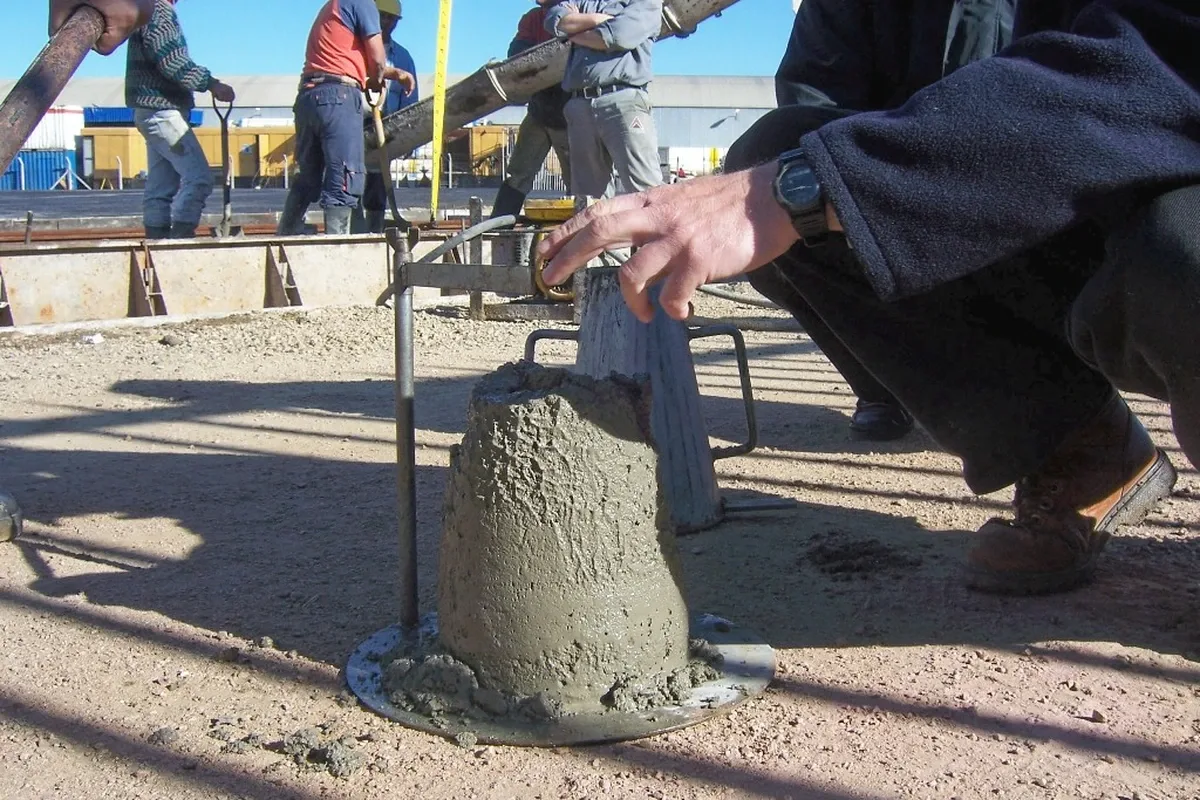

1) What does slump indicate?

Slump is a simple field test used to quickly assess the consistence / workability of fresh concrete. It indirectly reflects how readily concrete will place, flow/deform, and—often in practice—whether the water–admixture balance is reasonable.

Important: Slump is not a strength test. Two concretes with the same slump can have different compressive strengths; slump is mainly a consistence check.

2) Why is slump critical?

Slump testing is typically used to:

Verify batch-to-batch uniformity (does the same mix deliver similar consistence each time?).

Detect issues early such as excess water addition, incorrect admixture dosage, or aggregate moisture variations.

Confirm that the concrete is suitable for the intended placement conditions (pump, bucket, vibration, congestion of reinforcement, etc.).

3) Main factors affecting slump

The biggest drivers of slump are:

Water content and effective water/cement ratio

Chemical admixtures (especially superplasticizers) and their on-site “effect time”

Aggregate moisture (sand moisture, surface moisture) and gradation

Temperature and waiting time (slump may drop during transit)

Mixing energy/time

4) Slump test equipment

Slump cone (Abrams cone): truncated conical metal mold

Base plate (flat, non-absorbent surface)

Tamping rod

Ruler/measuring device

Common cone dimensions are 300 mm height, 200 mm bottom diameter, 100 mm top diameter.

5) How is the slump test performed? (summary)

The method is defined in EN 12350-2 (often adopted nationally) and ASTM C143/C143M in the USA.

Place the base plate on a flat, non-absorbent surface; secure the cone.

Fill the cone in 3 equal layers.

Rod each layer 25 times (evenly distributed).

Strike off/level the top surface.

Lift the cone vertically without twisting.

After the concrete subsides, measure slump in mm using the cone’s top level as reference.

6) How is slump read?

Principle: measure the vertical difference between the reference level (top of the cone) and the highest point of the slumped concrete; report as slump (mm).

Practical field method:

Invert the cone next to the slumped concrete,

Use a straight edge at the cone’s top level as a reference,

Measure the distance to the highest point of the concrete.

7) Slump shapes: True / Shear / Collapse

True slump: uniform subsidence; most meaningful result.

Shear slump: part of the mass shears sideways; may indicate cohesion/gradation/fines/admixture–water issues.

Collapse slump: concrete spreads/loses shape; the classic slump test may be unsuitable—other consistence tests may be needed for very fluid mixes.

8) Typical slump classes (S1–S4) and practical range

In EN practice (EN 206), common classes are:

S1: 10–40 mm

S2: 50–90 mm

S3: 100–150 mm

S4: 160–210 mm

Also, slump is generally most informative in roughly the 10–210 mm range; outside this range, other tests may be more appropriate.

9) Common field mistakes (and impact)

Twisting/pulling the cone sideways while lifting → inaccurate result.

Uneven filling or irregular rodding → poor repeatability.

Sloped/vibrating base → measurement error.

Very large aggregate / inappropriate consistence range → reduced relevance (follow standard limits).

Conclusion

The slump test is one of the most practical tools for rapid consistence control of fresh concrete. With correct equipment, execution, and interpretation, it helps catch water/admixture and aggregate-moisture related deviations early—supporting quality and cost control.

What Is Concrete Slump? How Is It Measured? (EN 12350-2 / ASTM C143)

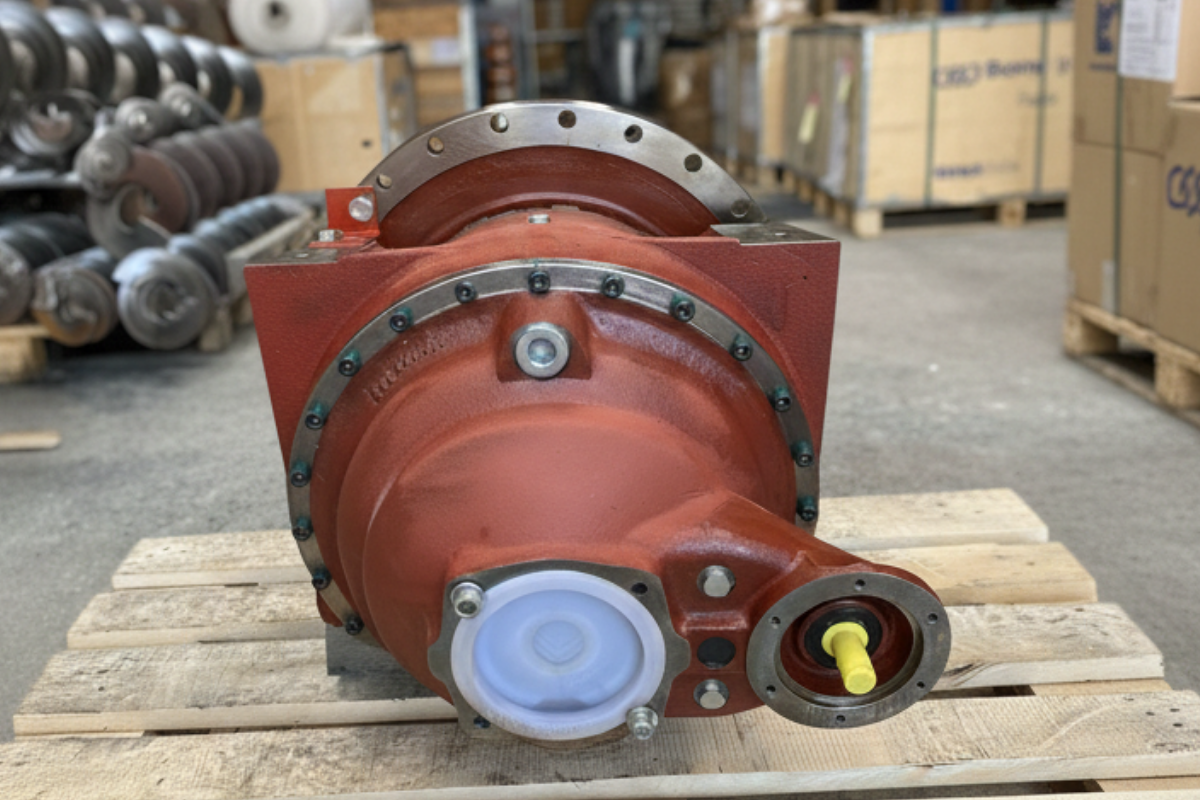

A gearbox is the heart of the drive system in many industrial machines such as concrete batching plant mixers, transit mixer drums, conveyors, hopper systems, and more. It transmits torque correctly, reduces speed, and keeps the system stable. For this reason, selecting a gearbox may look like a simple “part replacement,” but in reality it directly affects production continuity, failure risk, and total cost. In recent years, one of the most common problems seen on site is counterfeit or refurbished gearboxes being sold as “new and original,” and—because purchasing decisions are often price-driven—these products being chosen.

**What’s Happening in the Market? Products Sold as “New” That Are Not New**
Some gearboxes can be collected from various sources, have parts replaced, and then be offered for sale as “refurbished.” Refurbished products—when done correctly, with proper procedures and full transparency—are a separate topic. The issue is that some products are marketed as “brand-new original” without disclosing that they are refurbished, and in some cases even with label or serial number manipulation. Worse still, in certain situations, fully counterfeit housings and internal gear components can be presented as “branded” products and make their way into the field.

The key point is this: even if a gearbox appears to “work” at first glance, details such as internal tolerances, heat-treatment quality, and bearing or gear material determine the real difference. That’s why the problem often doesn’t show up on day one—it emerges under load and over time.

**The Result of Price-Driven Choices: Hidden Damage Grows**

With counterfeit or non-standard refurbished gearboxes, the following risks typically increase:
Short gear and bearing life: If material quality and heat treatment are not correct, gear surfaces wear rapidly and bearings fail early.
Overheating and lubricant issues: As internal tolerances and friction increase, temperature rises; oil degrades faster, seals wear out early, and leakage begins.

Noise, vibration, and performance loss: Poor assembly or incorrect gear contact increases vibration; connected components (motor, coupling, shaft) can also be damaged.Sudden stoppages and cascading failures: A gearbox failure rarely stays isolated; couplings, motors, bearing seats, frame connections, and even mixer or conveyor assemblies can be overstressed.Quality and efficiency loss: In concrete production, gearbox-related performance drops can affect mixing time and speed stability, indirectly impacting product quality.Uncertain warranty and service: For a product sold as “new,” real manufacturer warranty and traceability are often missing.

From an operational perspective, the most critical cost item is usually not the part price, but downtime and how an unplanned failure disrupts the entire operation. Choosing a low-priced, high-risk option for drive components like gearboxes often becomes “not cheap—but expensive” very quickly.

**Why Does an Original Gearbox Make a Difference?**
With original products (OEM standard), you are not just buying a brand label; you are buying correct material and heat-treatment standards, proper gear geometry and tolerances, correct compatibility of bearings, seals, and lubrication, traceable serial numbers, technical documentation, real warranty, long service life, and predictable maintenance intervals.This difference becomes even more pronounced in the concrete industry, where there are heavy loads, dusty environments, long operating hours, and frequent start-stop cycles.

**Practical On-Site Check: Signs That Raise Suspicion**
A 100% definitive diagnosis is not always possible on site; however, the following situations should raise questions:

- The price is abnormally low compared to the market
- The serial number or label looks suspicious, erased, or newly applied
- Packaging, casting quality, workmanship, and logo or label printing are inconsistent
- There is abnormal noise, vibration, or rapid overheating at first start-up
- The seller is not clear about warranty, origin, and traceability

Because a gearbox is a critical component, its authenticity and supply chain should be verified before purchase.

**Conclusion: “Good Price” Only Makes Sense With the Right Product**
Counterfeit or refurbished gearboxes sold as “new and original” create serious risk for operations that make price-focused decisions. The result is early failure, unplanned downtime, cascading faults, labor loss, and a growing total cost. For power transmission equipment like gearboxes, the goal should not be only a low price, but verifiable authenticity, correct technical compatibility, and long service life.

Is the Gearbox in Your Machine Original? The Hidden Cost of Counterfeit and “Refurbished” Gearboxes

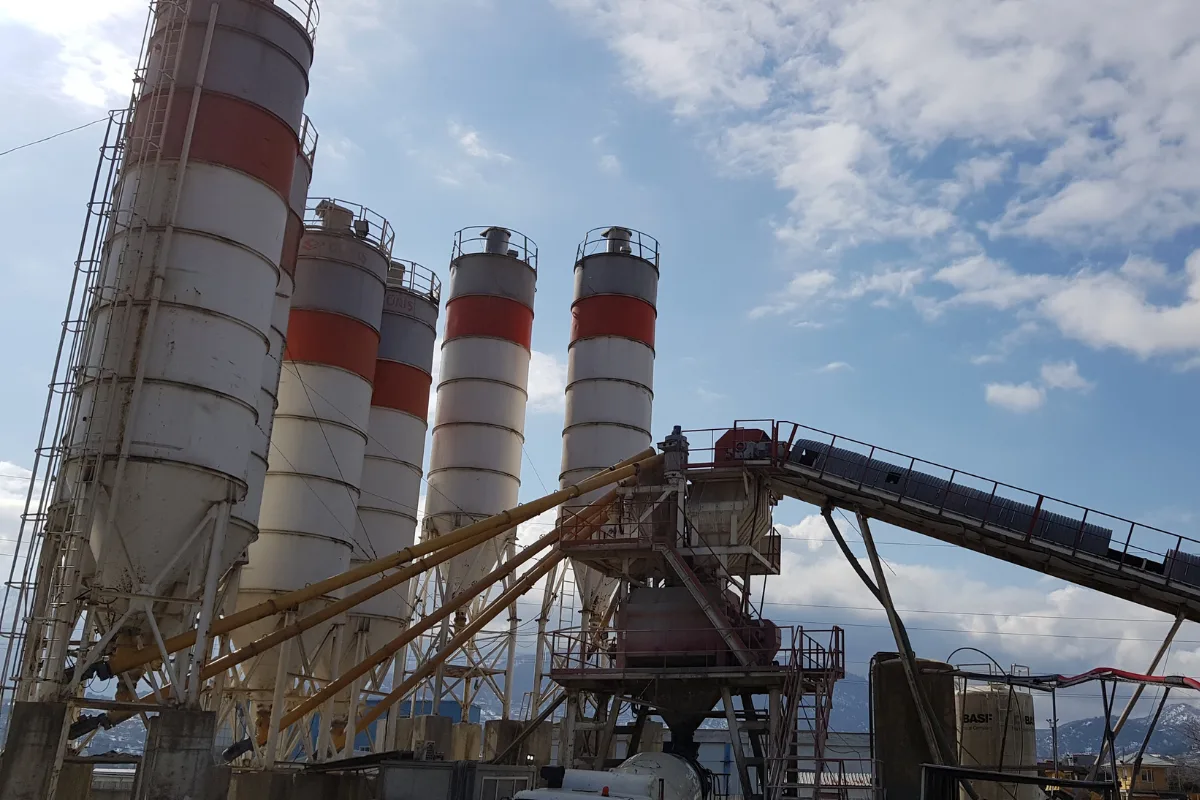

The concrete production chain typically follows Batching Plant → Transit Mixer → Concrete Pump. A failure at any point in this chain can affect the entire operation—causing direct financial losses and serious issues in concrete quality. Even a minor breakdown or performance drop in one of these machines is rarely just a “machine repair cost”; it can impact concrete quality, site productivity, labor, fuel, returned concrete, delay penalties, and customer satisfaction at the same time. For this reason, maintenance planning and spare-part selection are directly linked to total cost and concrete quality.

**1) Cost impact: Downtime is the hidden big bill**

In the field, the most expensive failures are usually those that cause unexpected downtime, because:

The jobsite waits: If the pump stops, placing is interrupted; crews and equipment wait.

Concrete degrades: The longer the concrete stays in the mixer, the more workability can decrease; returns or “rescue” admixtures add cost.

Fuel and labor increase: Mixer and pump may idle; maneuvering/cleaning time grows.

Planning breaks: The delivery chain is disrupted, shifts slip, and recovery costs appear.

Preventive maintenance (periodic checks, oil changes, filters, seals, wear parts) is often far cheaper than emergency repair. The key point is: maintenance costs are controllable; failure costs are surprises that grow quickly.

**2) Concrete quality: Equipment condition directly affects quality**

Concrete quality is not only a recipe issue. Dosing accuracy, mixing homogeneity, water-cement ratio, admixture control, and transport/placing time all matter.

In the batching plant:

Worn gates/valves and leaking covers can cause dosing errors.

If moisture measurement and scale calibration drift, the water-cement ratio changes—raising strength and shrinkage risks.

Mixer wear, paddle and liner loss reduce homogeneity, leading to segregation and consistency variation.

In the transit mixer:

Wear in the spiral and drum makes it harder to preserve the mix during transport.

Water tank/line problems or improper interventions can trigger wrong practices on site (e.g., adding water), reducing strength.

As chutes and wear parts deteriorate, discharge control drops and contamination risk increases.

In the concrete pump:

Wear on the S-valve, wear/cutting rings, pistons, and seals increases pressure loss, efficiency drop, and blockage risk.

Pipe/bend/clamp/gasket issues cause leakage, pressure fluctuations, and safety risks.

Irregular pressure and discontinuous flow can worsen placement quality, increasing segregation, voids, and surface defects.

Summary: Poorly maintained equipment can produce different results even with the same mix design.

**3) Choosing the right spare parts: “Cheap parts” often become expensive**

When price is the only criterion, risks increase:

Dimensional mismatch: Tolerance issues cause early wear, leakage, vibration, and performance loss.

Material quality: Wrong hardness/alloy dramatically shortens wear-part life.

Failure chain: A weak part stresses others (e.g., pump wear → pressure fluctuation → higher load on pipes/clamps).

Unplanned downtime: More frequent replacements raise labor and downtime costs.

Therefore, parts manufactured to OEM standards, with correct material and tolerances, usually deliver a lower total cost even if the purchase price is higher.

**4) Practical approach: Simple maintenance and stock strategy**

What works best on site is typically:

Critical parts list: Pump piston/seals, S-valve wear set; plant mixer paddles/liners; mixer spiral and wear parts.

Routine inspections: Leaks, pressure fluctuations, noise/vibration, oil and filter condition.

Calibration and records: Scales, moisture sensors, water dosing; keep records of every intervention.

Planned replacement: Change wear parts before performance drops—not after failure.

**Conclusion**

Batching plants, transit mixers, and concrete pumps form a system that determines both concrete quality and project pace. Maintenance and the right spare parts are strategic investments—not only to avoid failures, but to standardize quality, increase productivity, and reduce total cost. Planned maintenance replaces “surprises” with control—improving both quality and profitability.

The Importance of Maintenance and Using the Right Spare Parts in Concrete Batching Plants, Transit Mixers, and Concrete Pumps

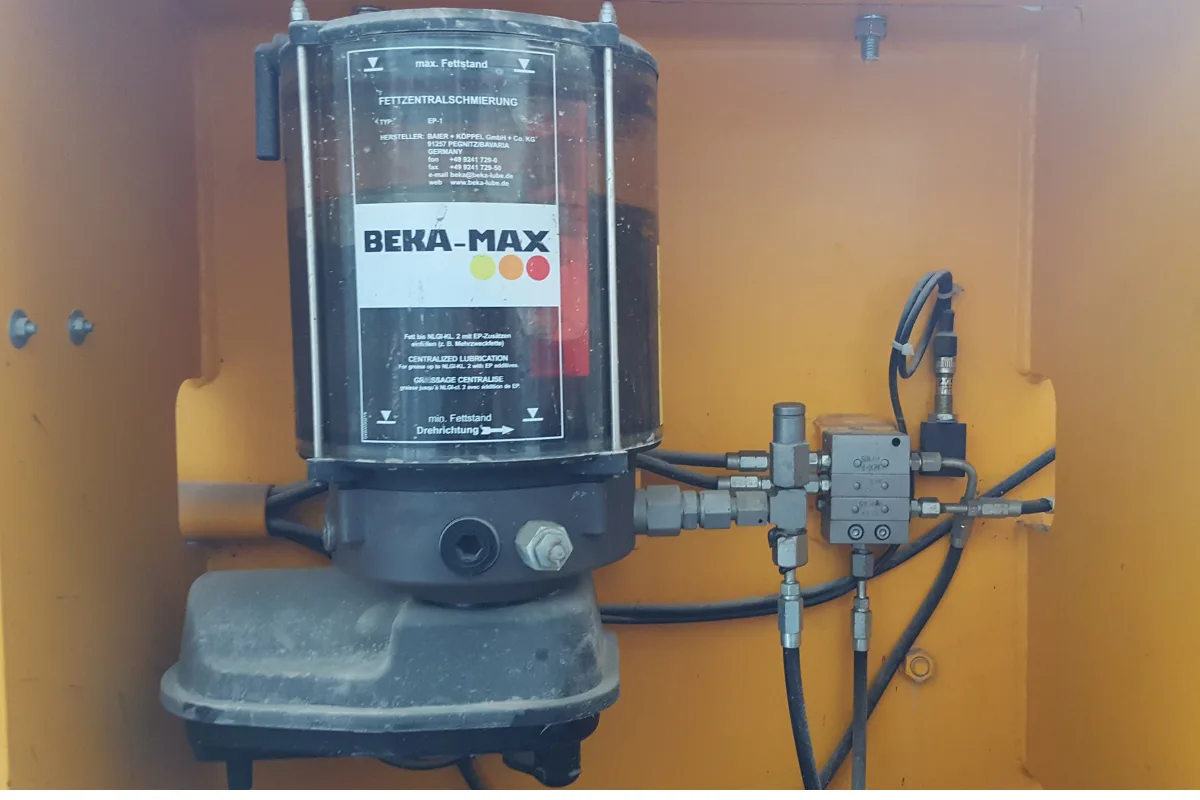

## Mixer Lubrication System in a Concrete Batching Plant: The Hidden Key to Production Continuity

In a concrete batching plant, the mixer is the most critical piece of equipment that determines production continuity. That’s why a “healthy” mixer is not only about paddle-liner wear; it also depends directly on a system that is at least as important: the mixer lubrication system. Because mixer bearings and main shafts operate under high load and constant vibration, damage accumulates quickly when lubrication is insufficient. This damage rarely appears all at once; it typically starts as a silent loss of performance, then progresses to increased heat and noise-vibration, and finally ends in severe failures that make the bearing–shaft group unusable on site. When lubrication is neglected, the failure does not target just one part—it targets the most expensive and hardest-to-repair section of the mixer.

A common field mistake is reducing lubrication to a simple “present/absent” check. The real question is: does the centralized lubrication system deliver the correct amount of grease/oil to the bearings? The pump may be running, but if the distributor block, lines, nipples, or metering elements (dosing/cycle setting) have issues, lubricant can leak to another point or may not reach some lines at all. In that case, no lubricant film forms at the bearing; metal-to-metal contact begins, bearing temperature rises, and the shaft surface gets scored—creating damage that is difficult to reverse. In practice, the phrase “if the bearing fails production stops; if the shaft fails production stops for a long time” summarizes why lubrication is a strategic topic.

### What happens when lubrication is disrupted?

Insufficient lubrication leads to bearing overheating, grease breakdown, loss of the lubricant film, and increased friction. As damage grows, wear/scoring appears on the shaft surface and repair cost multiplies. When bearing tolerances degrade, clearance and misalignment increase, and that misalignment loads other mixer components as well. As heat and vibration rise, seal life shortens; cement-dust-moisture can enter the bearing area more easily. Ultimately, unplanned downtime becomes unavoidable, and in the concrete production chain (plant → truck mixer → pump) a single stoppage can affect the entire jobsite.

### Where is the weak link in the lubrication system?

Mixer lubrication problems often originate from small but critical components. The automatic lubrication pump may generate pressure, yet lubrication can still be inadequate if dosing/cycle is insufficient (wrong setting, incorrect cycle time). If the progressive distributor clogs or sticks, lubricant will not reach some lines. Hoses/pipes can be crushed, broken, or cracked. If there is leakage at nipples and connection points, lubricant is expelled outside instead of reaching the bearing. If the grease/oil in the reservoir becomes contaminated or the level drops, the pump can draw air and delivery becomes irregular. The wrong grease/oil selection also weakens the system in terms of water resistance, EP additives, and operating temperature. The key point is: the lubrication system is made of small parts, but its failure destroys big parts (bearing–shaft).

### Periodic checks: short checks prevent major failures

A large portion of mixer bearing failures can be caught early with a simple routine. Daily or at shift start, check reservoir level, pump operation, and whether there is abnormal heat/noise/vibration at the bearing area. Weekly, inspect distributors and line connections for leakage, check for crushed/broken lines, and verify actual lubricant output at selected points. Monthly/periodic maintenance should include checking pump elements, filters, and distributors; reviewing cycle/dosing settings; and, if possible, recording bearing temperature trends. The goal is not “seeing it after it fails,” but verifying that the pump + distributor + lines + nipples are truly delivering the correct amount of lubricant to the bearings.

### What can PMV provide?

PMV Machinery provides solutions for the most needed equipment and consumables in centralized lubrication systems used on concrete batching plant mixers: automatic lubrication pumps, distributor blocks/progressive distributors, lubrication lines and connection elements, nipples and fittings, and other small but critical parts that affect system performance (leaking elements, clogged line components, etc.). When required, technical guidance can also be provided on dosing/cycle checks and selecting site-appropriate components based on how the existing system operates. The core goal is not that lubricant “exists,” but that it reaches the correct point in the correct amount.

Why Is the Concrete Batching Plant Mixer Lubrication System Critical? The Most Effective Way to Prevent Bearing and Shaft Failures

## Calibration: The Hidden but Critical Process for Concrete Quality, Cost Control, and Profitability

> In concrete production, many people equate quality with the “mix design”: the right cement grade, the right aggregate grading, the right admixture, and the right water/cement ratio. On site, what truly determines quality is applying that mix design with the same accuracy every time. In a concrete batching plant, the key mechanism that enables this is calibration.

Calibration is the adjustment and periodic verification of weighing and dosing equipment so they measure and dispense according to reality. While production continues, small deviations tend to accumulate; even with the same mix design, results can vary from batch to batch. That’s why calibration is not just “cement scale adjustment”; it is the coordinated consistency of aggregate scales, water-line flowmeter/valve, admixture pumps, load cell wiring (junction box), and automation parameters.

### Why does it directly affect quality?

The most sensitive balance in concrete is the water/cement ratio. A small error in water dosing or in accounting for aggregate moisture can shift slump, affect early strength, increase shrinkage/cracking risk, and degrade surface finish. If the aggregate scale is not weighing correctly, the mix proportions drift and some batches can show segregation or settlement problems. Sensors such as a bunker sand moisture sensor help capture “hidden water,” but the sensor reading must be checked on site and applied correctly in automation. In practice, periodically taking samples and comparing actual moisture with a reference method reduces variability significantly.

The tolerance is even tighter for chemical admixtures. If the admixture pump flow rate drifts out of calibration, one batch may be fluid while another is stiff; setting time can change and on-site intervention may become necessary. The goal is not to preserve the theoretical mix design on paper, but to keep the actual dosing stable in the field.

### How does it increase cost?

When calibration drifts, cost rises in two ways. First is invisible overconsumption: for example, if the cement scale consistently dispenses a few kilograms above target, a “small” difference per mixer becomes a serious loss by month-end. The same applies to admixtures and water. Second is operational cost: when slump is off, returns, adding water on site, pump flow issues, waiting time, and reputational damage from delays come into play. What reduces profitability is often not price, but this kind of waste and uncertainty.

### Automation and load cells

Automation decisions are driven by load cell signals. Poor-quality or unsuitable load cells can drift with temperature, vibration, and wiring conditions, reduce repeatability, and destabilize measurement. Therefore, capacity selection, load cell type, environmental conditions, and connection components should be evaluated together. Zero and span checks should be done regularly; calibration values should be recorded and drift trends monitored over time. If drift increases, common root causes are mechanical friction, binding at suspension points, chassis contact, or cable damage; catching these early shortens downtime.

### Correct field practice

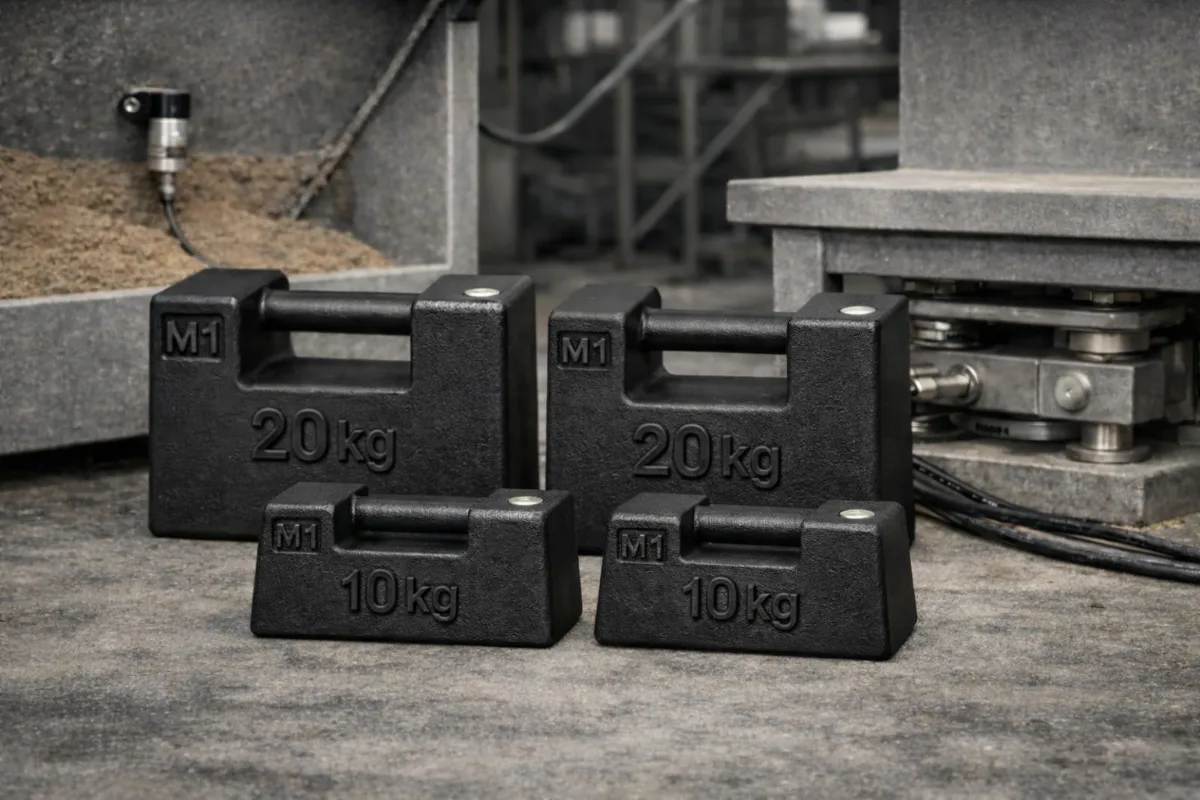

Calibration weights should be of known class and in good condition; verification should be done at multiple load levels rather than a single point. The goal is not to say “I calibrated it once,” but to maintain measurement accuracy continuously. If short-interval checks (zero point, connections, visual inspection) and periodic comprehensive verification are run together based on production intensity, the plant operates more stably, quality variation decreases, and material consumption stays on target. After calibration, a few trial batches should also be used to confirm alignment between the automation display and real practice by checking water amount, admixture consumption, and weighing repeatability.

For original load cells, bunker sand moisture sensors, and calibration weights—contact us for technical support and supply.
